Lõi camera hồng ngoại không được làm mát: 1280x1024/12μM cho hình ảnh nhiệt có độ ổn định cao
Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xNghị quyết | 1280x1024/12μm | MẠNG LƯỚI | <50mK |
---|---|---|---|
Dải quang phổ | 8~14μm | Kích cỡ | 20x20x10,4mm |
Điểm nổi bật | Không làm mát lõi máy ảnh hồng ngoại 1280x1024,lõi máy ảnh hình ảnh nhiệt 12uM,lõi máy ảnh hồng ngoại HD không làm mát |

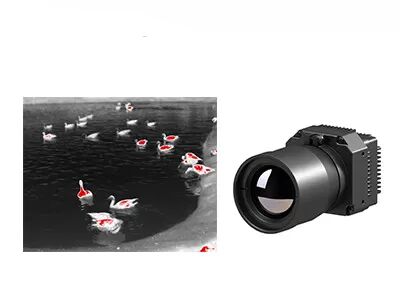

Uncooled Infrared Camera Core: 1280x1024/12μm for High Stability Thermal Imaging
PLUG1212 uncooled thermal camera core offers thermal images up to 1280x1024 pixels and shows you the smallest of details. Its reduced 12µm pixel size offers better spatial resolution and matches shorter optical lens focus to achieve the same range mission.
Unlike traditional cooled thermal imaging systems, the uncooled HD LWIR 1280x1024/12μm VOx Thermal Imaging Module operates without the need for a cryogenic cooling system. This results in significant cost reduction, increased portability, and a simplified maintenance process. The module utilizes a state-of-the-art uncooled microbolometer sensor based on VOx (Vanadium Oxide) technology, ensuring reliable and continuous thermal imaging performance.
The compact design of the module, with its dimensions optimized for easy integration, makes it suitable for installation on drones, handheld devices, security systems, and other portable platforms. This lightweight module has been engineered to ensure seamless integration into existing systems, offering flexibility and versatility in thermal imaging applications.
PLUG1212 infrared thermal core is applied in a wide range of areas and its visual information solutions cover day, night, low visibility and all weather conditions.
- Ultra clear thermal imaging
- Stable performance
- Clear Image Quality & Details
- Strong Environmental Adaptability
Model | PLUG1212 |
IR Detector Performance | |
Resolution | 1280x1024 |
Pixel Pitch | 12μm |
Spectral Range | 8~14μm |
NETD | <30mk |
Image Processing | |
Frame Rate | 25Hz |
Start-up Time | <25s |
Analog Video | / |
Digital Video | HDMI/RAW/YUV/BT1120 |
Extension Component | USB/Camerlink |
Dimming Mode | Linear/Histogram/Mixed |
Digital Zoom | 1~8X Continual Zoom, Step Size 1/8 |
Image Display | Black Hot/White Hot/Pseudo Color |
Image Direction | Horizontally/Vertically/Diagonally Flip |
Image Algorithm | NUC/AGC/IDE |
Electrical Specification | |
Standard External Interface | 50pin_HRS Interface |
Communication Mode | RS232-TTL, 115200bps |
Supply Voltage | 5±0.5V |
Typical Power Consumption | <2.0W |
Physical Characteristics | |
Dimension (mm) | 56x56x40.2 |
Weight | ≤220g |
Environmental Adaptation | |
Operation Temperature | -40°C ~ +70°C |
Storage Temperature | -45°C ~ +85°C |
Humidity | 5%~95%, Non-condensing |
Vibration | Random Vibration 5.35grms, 3 Axis |
Shock | Half-sine Wave, 40g/11ms, 3 Axis 6 Direction |
Optics | |
Optional Lens | Fixed Focus Athermal: 19mm/25mm |
The PLU1212 infrared imaging module is widely used in Security & Monitoring, Outdoors, Firefighting & Rescue, Law Enforcement & Rescue, ADAS, UAV Payloads etc.
1.What is an infrared detector?
An infrared detector is a device that detects and measures infrared radiation. Infrared radiation is a type of electromagnetic radiation that has a longer wavelength than visible light and is therefore not visible to the naked eye. Infrared detectors can detect and analyze the distribution of infrared radiation across a range of wavelengths. They are used in a variety of applications, including thermal imaging, spectroscopy, remote sensing, and security systems. Infrared detectors can be classified into several types, including photon detectors (such as photovoltaic detectors or photoconductors) and thermal detectors (such as microbolometers or thermopiles).
